ZEISS VISUFIT1000
The most precise lens centration system in the world. Nine cameras. 45 million data points. One single shot. Now available at our St James Arcade boutique.
Most people choose their lenses based on prescription alone. The ZEISS VISUFIT 1000 changes that conversation entirely, because the prescription is only part of how a lens performs.
A lens is only as good as its position in the frame. Centration: how precisely the optical centre of each lens aligns with the pupil of each eye is what determines whether a lens performs to its full potential or falls short. Inaccurate centration can reduce optical performance by up to 40%, producing discomfort and visual distortion that even a perfect prescription cannot correct. For decades, this measurement was taken with handheld rulers and manual pupilometers. Skilled, but imprecise. ZEISS set about changing that in 1992 with the first video centration system, and with the VISUFIT 1000 they arrived at the answer the industry had been waiting for.
ZEISS VISUFIT1000
“Good vision requires more than the right prescription. It also requires that the lenses are precisely centred in the frame and in relation to the eyes.”

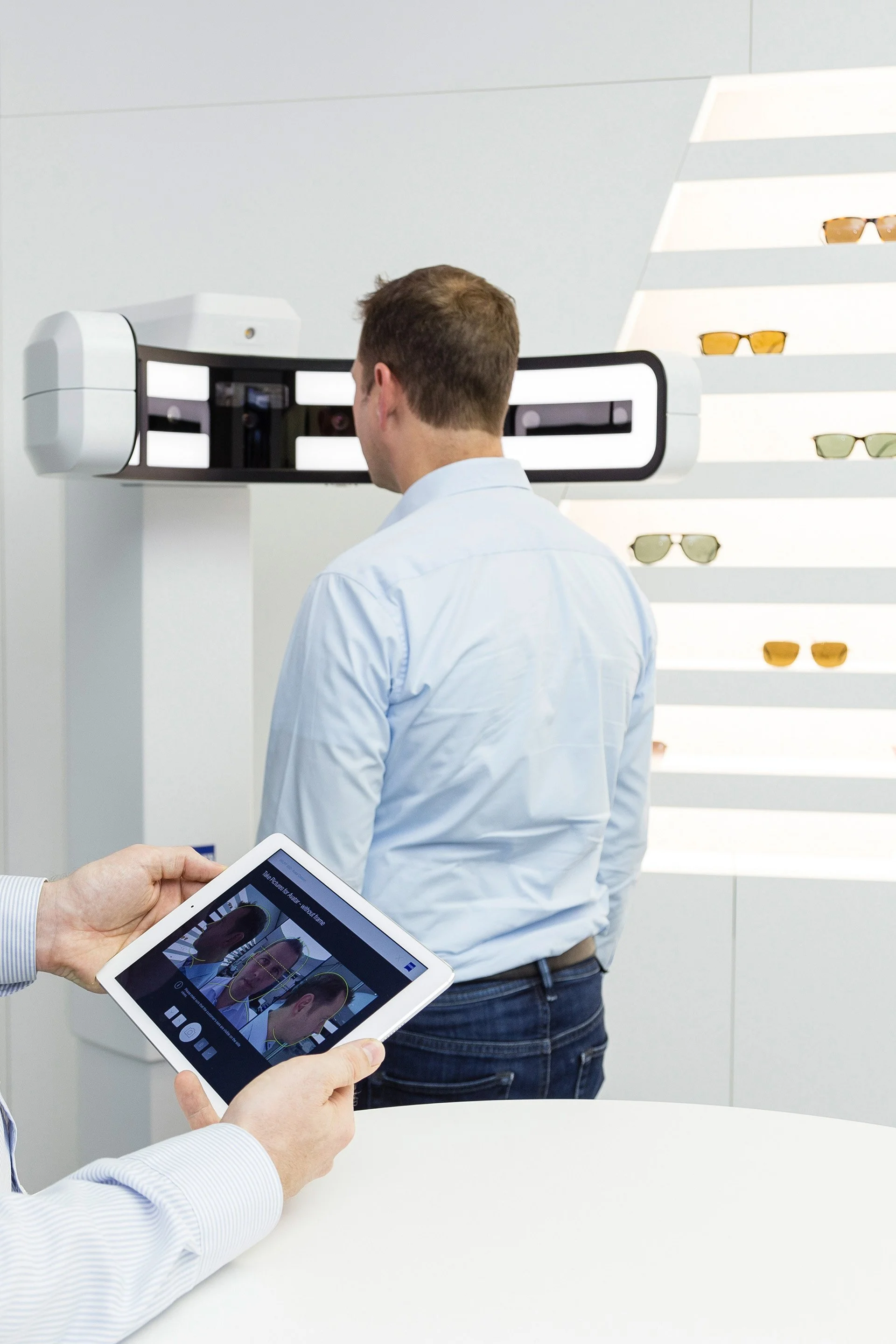

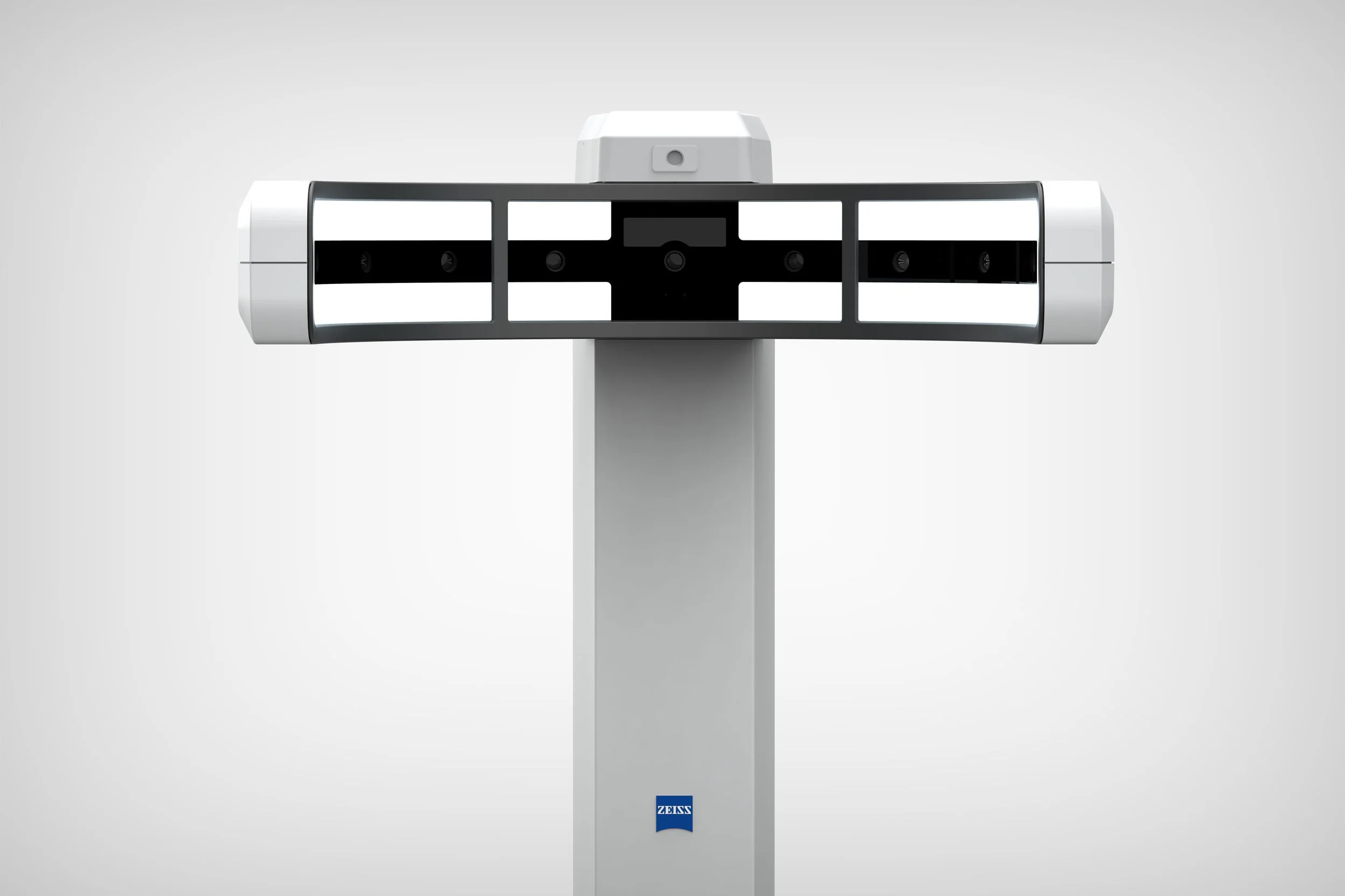

The VISUFIT1000 uses nine synchronised cameras to capture a full 180-degree view of the face in a single shot. No calibration clip required. The client sits naturally in front of the system wearing their chosen frame, and in one instant the system processes 45 million data points to create a precise, three-dimensional digital reconstruction of the face. From this, centration data for both eyes is calculated independently, accounting for pupil distance, back vertex distance, pantoscopic angle, frame position and body posture.
The result is a digital twin: a detailed 3D avatar of the wearer, accurate enough to be used not only for centration but for virtual frame comparison, allowing clients to see exactly how a frame looks on their own face from every angle before committing. This is not an approximation. It is a measurement system built to match the precision of the lenses it serves.
Measurement in action.
The VISUFIT 1000 is the measurement platform for ZEISS SmartLife Individual lenses, the most personalised lenses ZEISS makes. SmartLife Individual takes the centration data captured by the VISUFIT 1000 and combines it with up to eight distinct optimisation technologies, including ZEISS Intelligence Augmented Design (IAD), which matches the wearer's individual parameters against 12.5 million data points of real-world visual behaviour across age groups. The lens is not designed in the abstract. It is designed for a specific person, in a specific frame, worn at a specific angle on a specific face.
The practical difference is significant. SmartLife Individual progressives offer up to 29% wider fields of clear vision compared to standard progressive designs, and faster adaptation times. The reading zone, the intermediate zone and the distance zone are all calculated to suit how the individual's eyes actually move, not a statistical average. For high prescriptions in particular, this level of precision transforms the wearing experience.
Carl Zeiss Vision · Since 1846
175 Years of Precision Optics, Now at Your Fingertips
Carl Zeiss introduced the world's first individual progressive lens using freeform technology in 2000. The VISUFIT 1000, launched in 2018, represents the next step in that same journey: a system precise enough to measure what the eye actually sees, not just where it sits. Ocular & Eyes is an authorised Carl Zeiss Vision preferred retailer, and the VISUFIT 1000 is central to how we fit every pair of SmartLife Individual lenses at our Sydney locations.
Why It Matters Here
Ocular & Eyes carries some of the most considered frames available in Australia. Chrome Hearts handcrafted in Japan. Masunaga MOC in limited runs of 150 pieces. TVR built from 1940s blueprints in Sabae. These are frames with genuine character, and they deserve lenses that match them. The VISUFIT 1000 ensures that whatever frame a client chooses, their lenses are centred and calculated with the same level of precision that went into making the frame itself.
A great frame and a mediocre lens fit is a missed opportunity. The VISUFIT 1000 closes that gap.
